Wacom DTH-2420

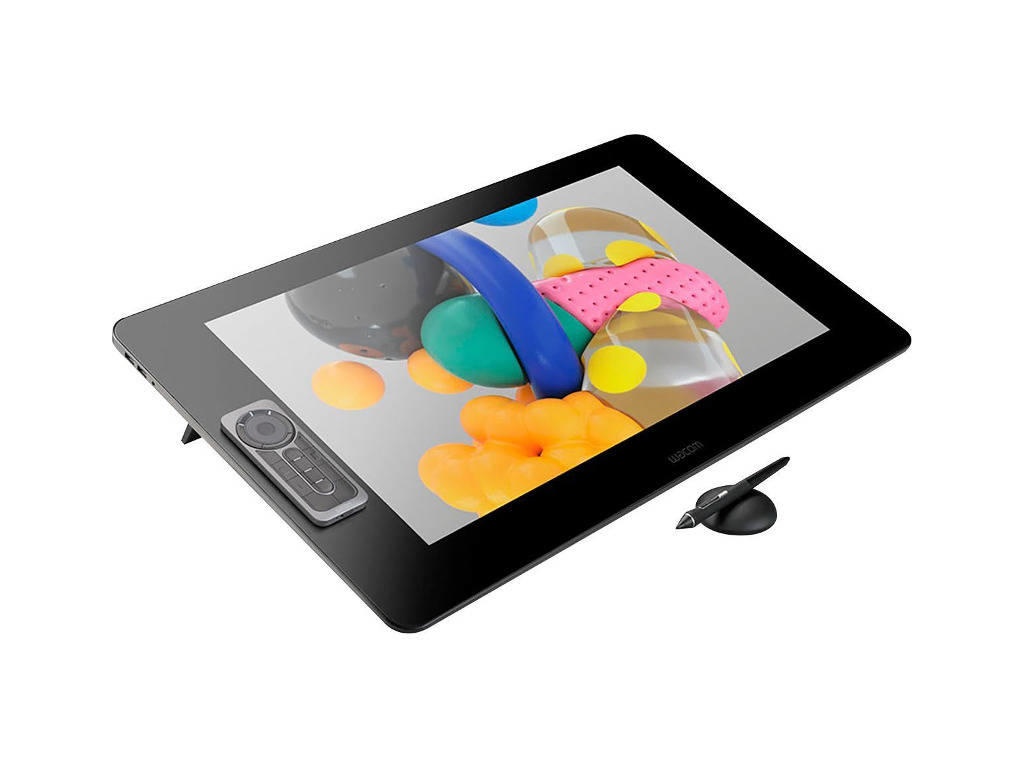

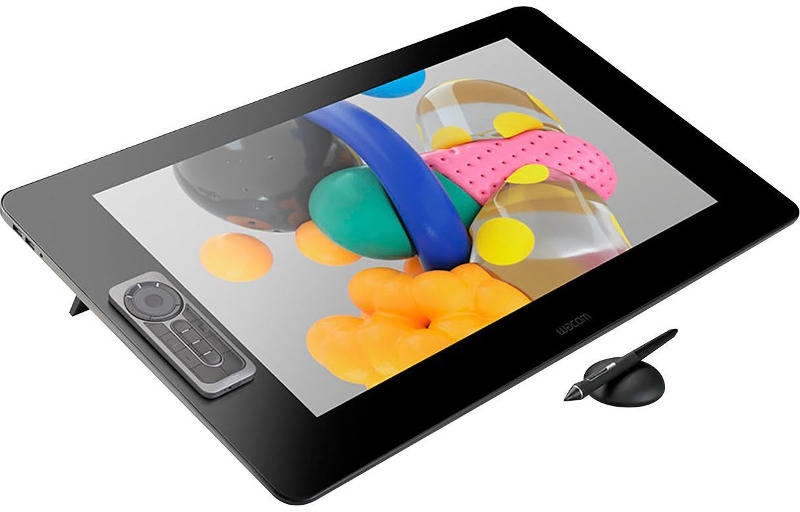

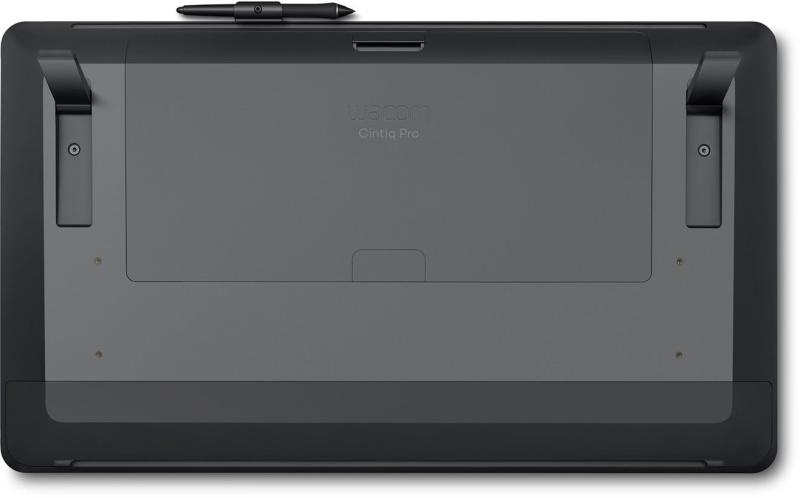

Wacom Cintiq Pro 24 touch

DTH-2420

Black





Create directly on a large canvas with premium color performance

Use the Wacom Cintiq Pro 24 for absolute harmony with your work. Premium 4K screen with world class color performance, and virtually no parallax, enhance every creative breakthrough. The Wacom Pro Pen 2 provides state-of-the-art creative pen technology, meaning every stroke, every move of your hand is followed with unerring accuracy





Our largest screens give you more space, more efficiency, more time.

Wacom Cintiq Pro 24 and 32 give you something priceless: space. So much, in fact, that you won't waste time searching for that reference image or opening and closing different programs on a secondary screen. And there'll be less zooming in and out too. Now you can save time and take control of your creativity, for a more efficient, controlled workspace











Ideas jump off the screen

4K resolution (3840 x 2160 px) is packed into a 24 LCD display with superb color accuracy (99% of Adobe® RGB coverage, CIE1931). You can see every tiny detail of your greatest artwork, design or photographic projects







Display Size: 677 x 394 x 47 mm

Display weight: 7kg

Screen Size (Measured Diagonally): 59.94 cm / 23.6 in

Technology: IPS UHD high brightness panel

Displayable Colors (maximum): 1.07 billion colors (10 bits color)

Aspect Ratio: 16:9

Viewing Angle: 176° (88°/88°) H, (88°/88°) V

Contrast Ratio: 1000:1

Brightness: 350 cd/m2

Response Rate: 14 ms

Active Area: 522 X 294 mm (20.55 X 11.57 in)

Color Gamut: 99% Adobe RGB

Industry Standard Pre-sets: 6500° K whitepoint default

Graphics Input: USB type C port (supporting DisplayPort Alternate Mode) or DisplayPort or HDMI 2.0 port (required for 3840 x 2160 resolution)

Multi-touch: Yes

Pen: Wacom Pro Pen 2

Pressure: Levels 8192, both pen tip and eraser

Tilt Range: 40 degrees

Tilt Recognition: ±60 levels

Type: Pressure-sensitive, cordless, battery-free

Switches: Tip switch, 2 side switches, eraser

Nibs: 10 (6 standard, 4 felt) in pen stand

Pen Box/Holder: Yes - Pen Holder

Pen Stand: Yes

Grip: Latex-free silicone rubber

Technology: Patented electromagnetic resonance method

Resolution: 5080 lpi

Expresskeys: 17 customizable, application-specific on

included ExpressKey Remote

Touch Ring: Yes - on included ExpressKey Remote

Rocker Ring And Home Button: Yes - on included ExpressKey Remote

Radial Menu: Yes

Precision Mode: Yes

Display Toggle: Yes

Dedicated Pan, Scroll, Zoom, Brush Size: Yes

ExpressKey Remote Dimensions 135 x 52 x 10 mm

ExpressKey Remote Continuous Operation: Up to 160 hours, if a key is pressed every 30 seconds

ExpressKey Remote Charge Time: Up to 2 hours

PC and Mac Connection Requirements: USB-C supporting DisplayPort Alternate Mode (DP Alt), or DisplayPort and standard USB-A, or HDMI port and standard USB-A port

*When connected to host computer over USB-C (including Cintiq Pro Engine), Cintiq Pro USB 3.0 ports run at USB 2.0 speeds to accommodate 4K video bandwidth over USB-C.

Audio: Audio headset jack, built-in microphone

Power Supply Input: 100 to 240 VAC, 50/60HZ

Power Supply Output: 20 VDC, 2.25 A (max)

Power Consumption:

Power ON mode (Max. ): 100 W

Power sleep mode: 2.0 W or lower

Power OFF mode: 0.5 W or lower

Battery: Rechargable Li-ion battery on include ExpressKey Remote

Security: Kensington® Lock Port (lock purchased separately)

System Requirements: PC: Windows® 7 or later (latest service pack/build),

Mac: OS X 10.11 or later (latest update); USB-C port with DisplayPort Alternate Mode (UHD), or Mini DisplayPort/DisplayPort (UHD) and USB-A, or HDMI 2.0 (UHD) and USB-A; Internet access for driver download
